Dual 200mm PC Fan Duct Adapter 4 to 8 Inch High Temperature | CUBEIFY

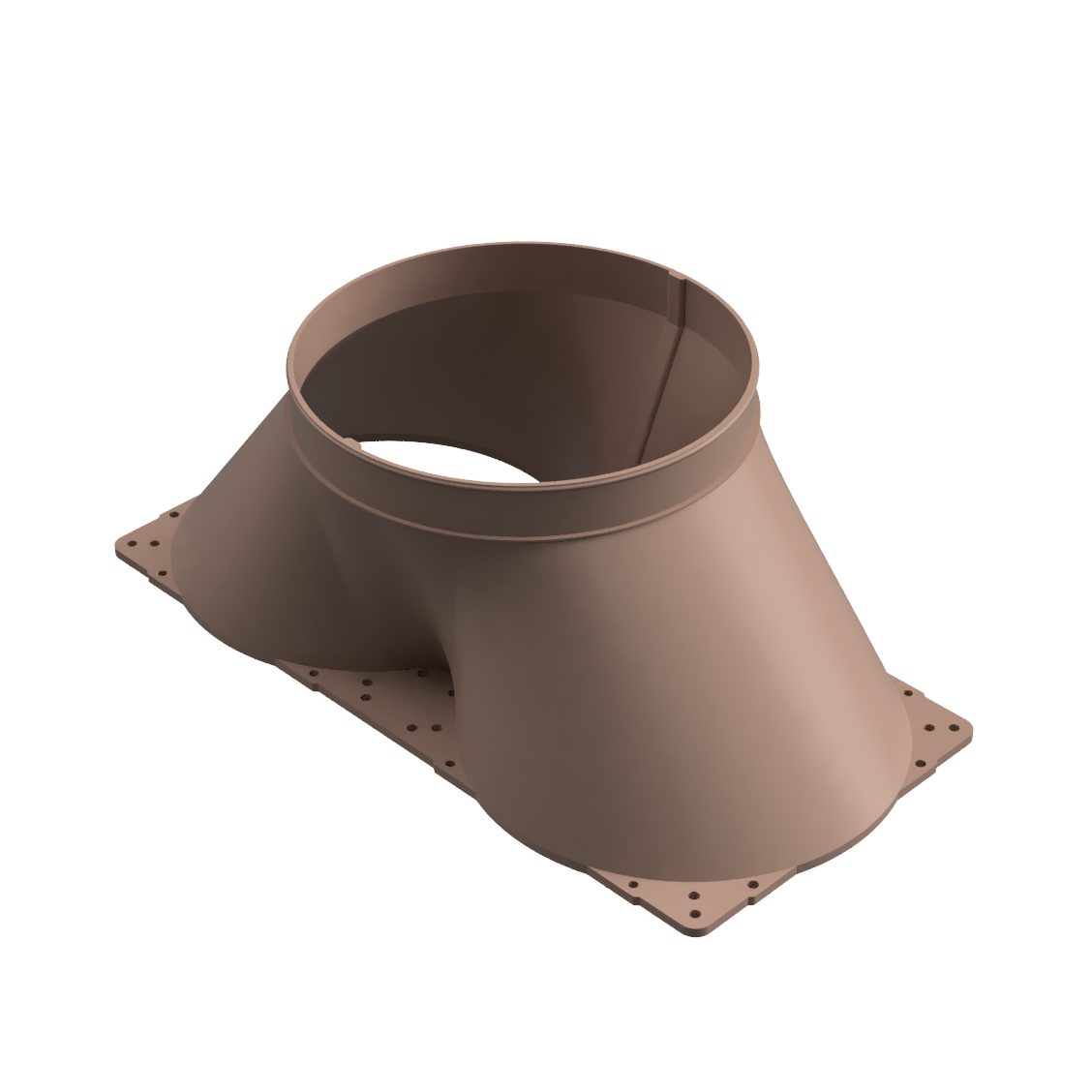

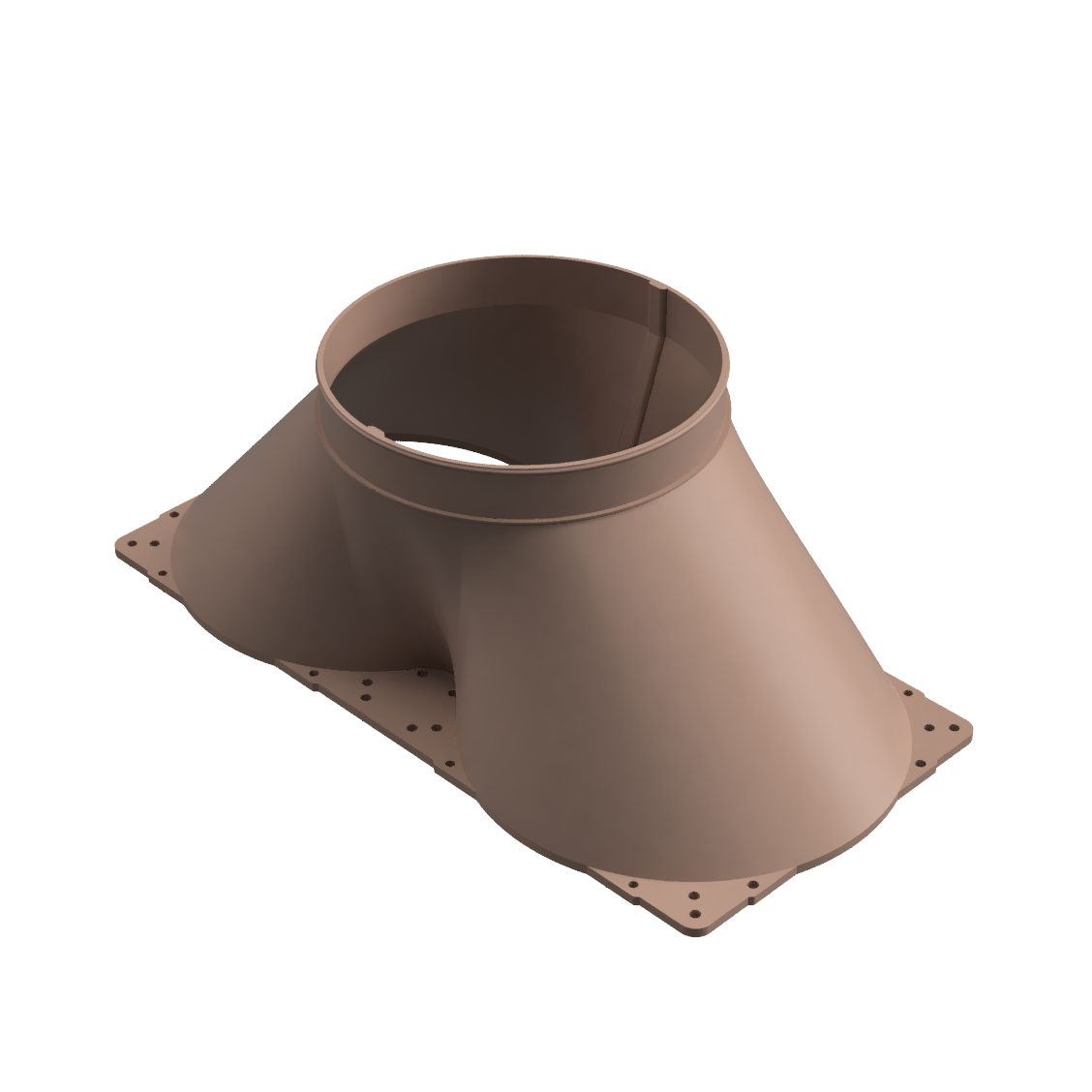

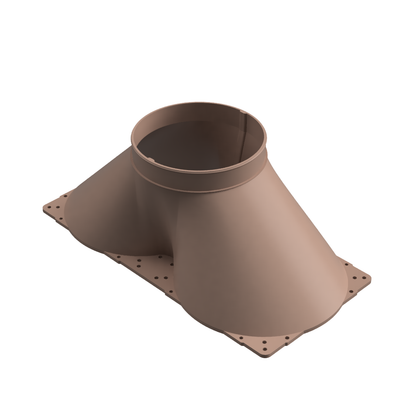

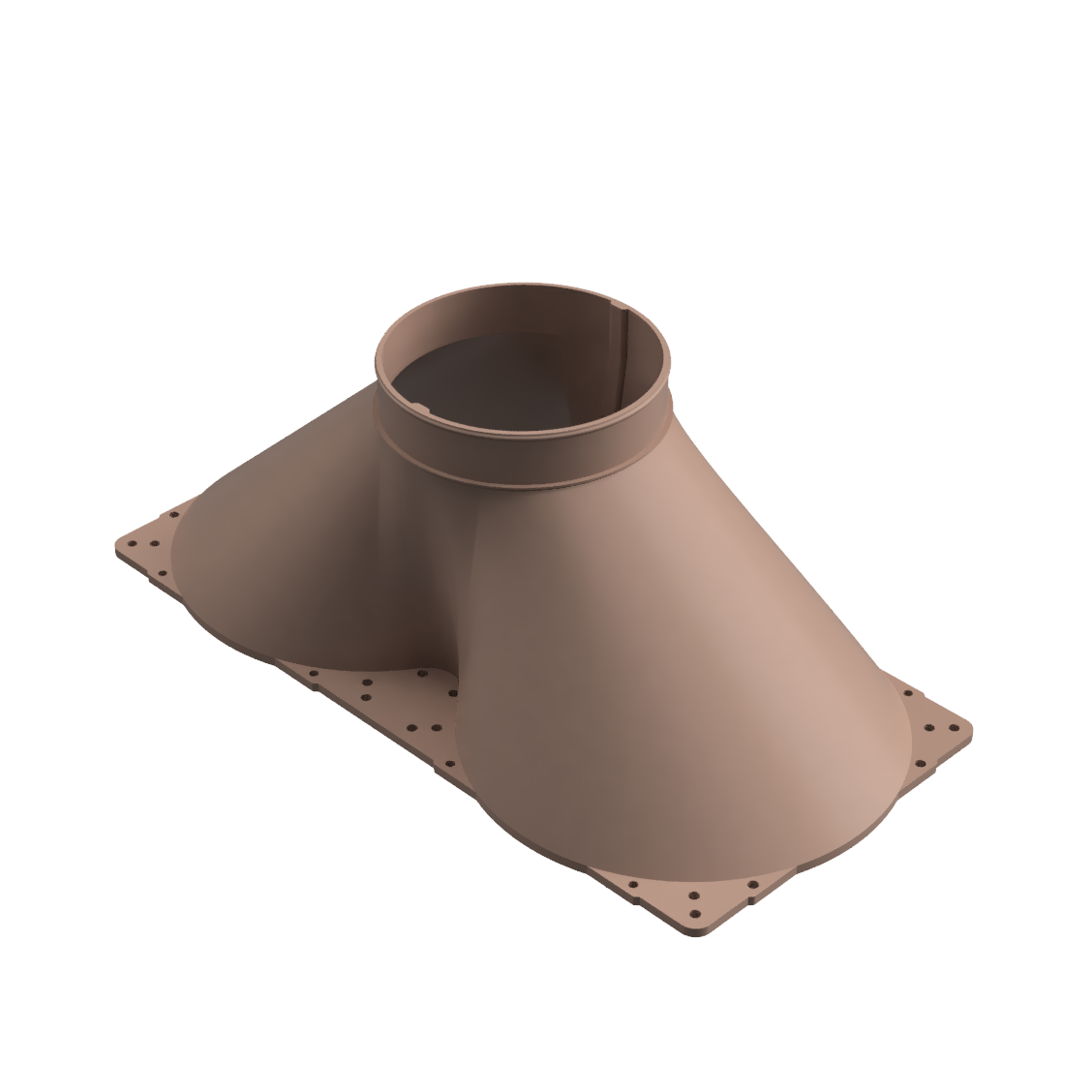

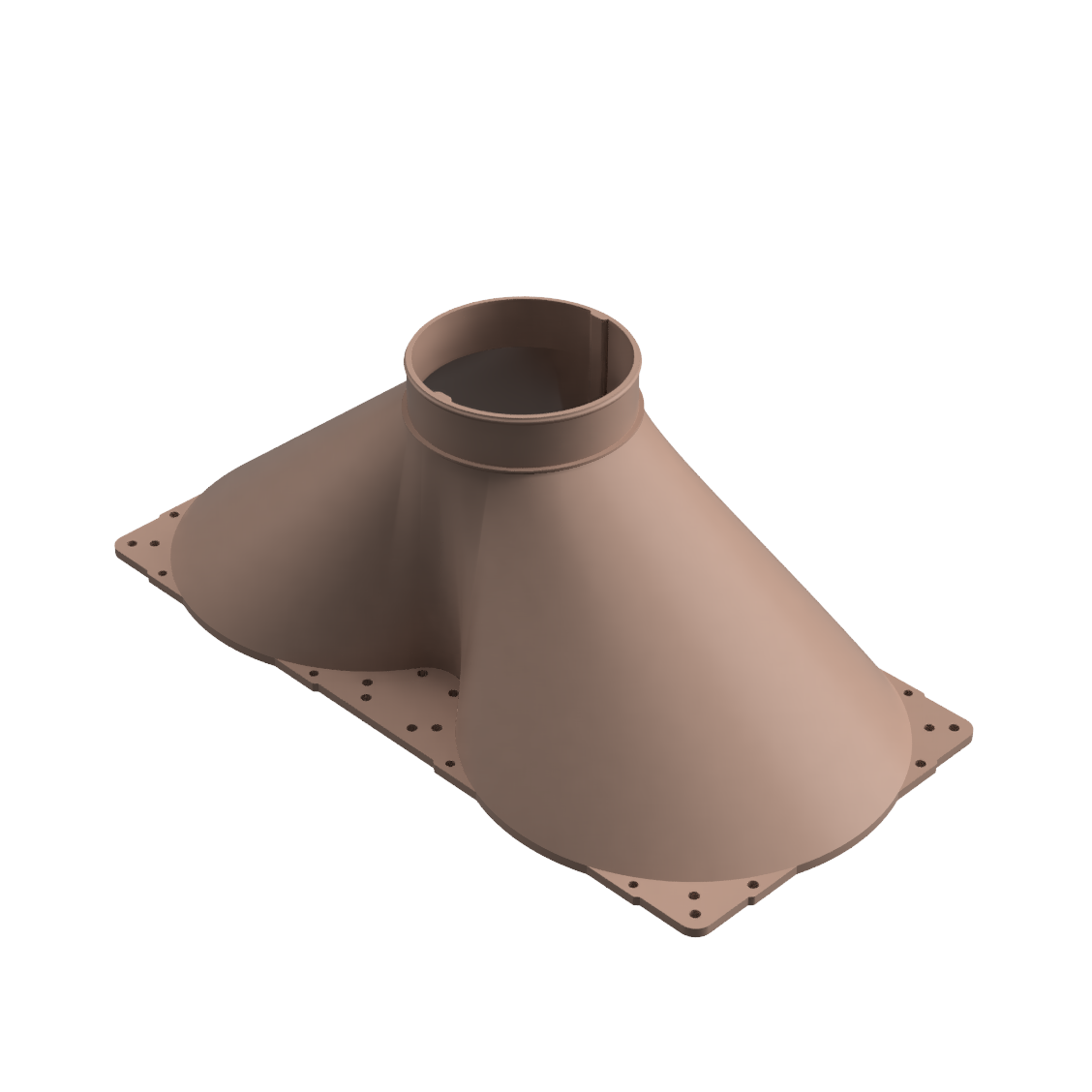

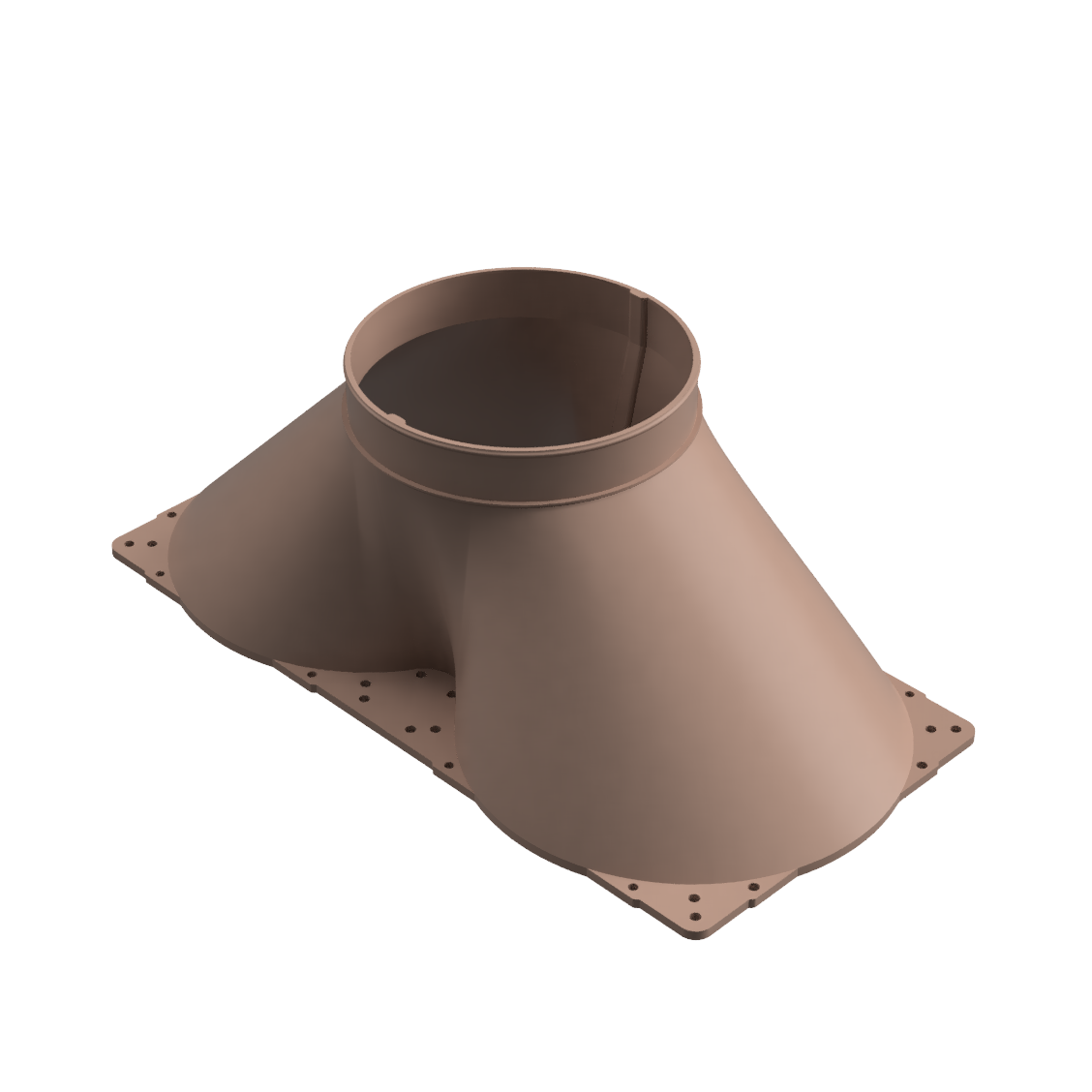

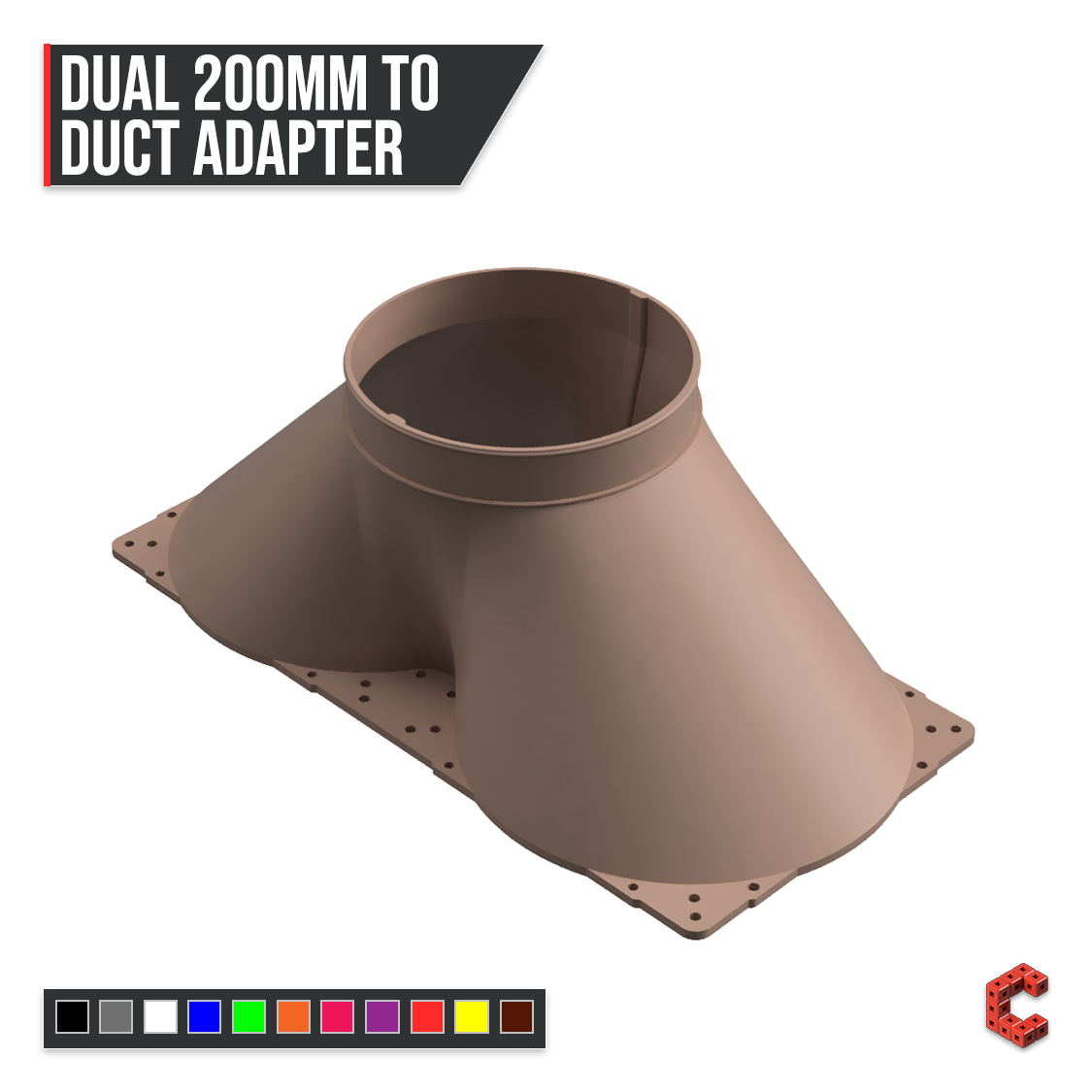

This dual 200mm PC fan duct adapter combines two 200mm fans into one flexible exhaust hose with 4, 5, 6, 7 or 8 inch outlets. It is intended for high-airflow PC exhaust, server-rack ventilation, mining-rig extraction and other ducted airflow projects.

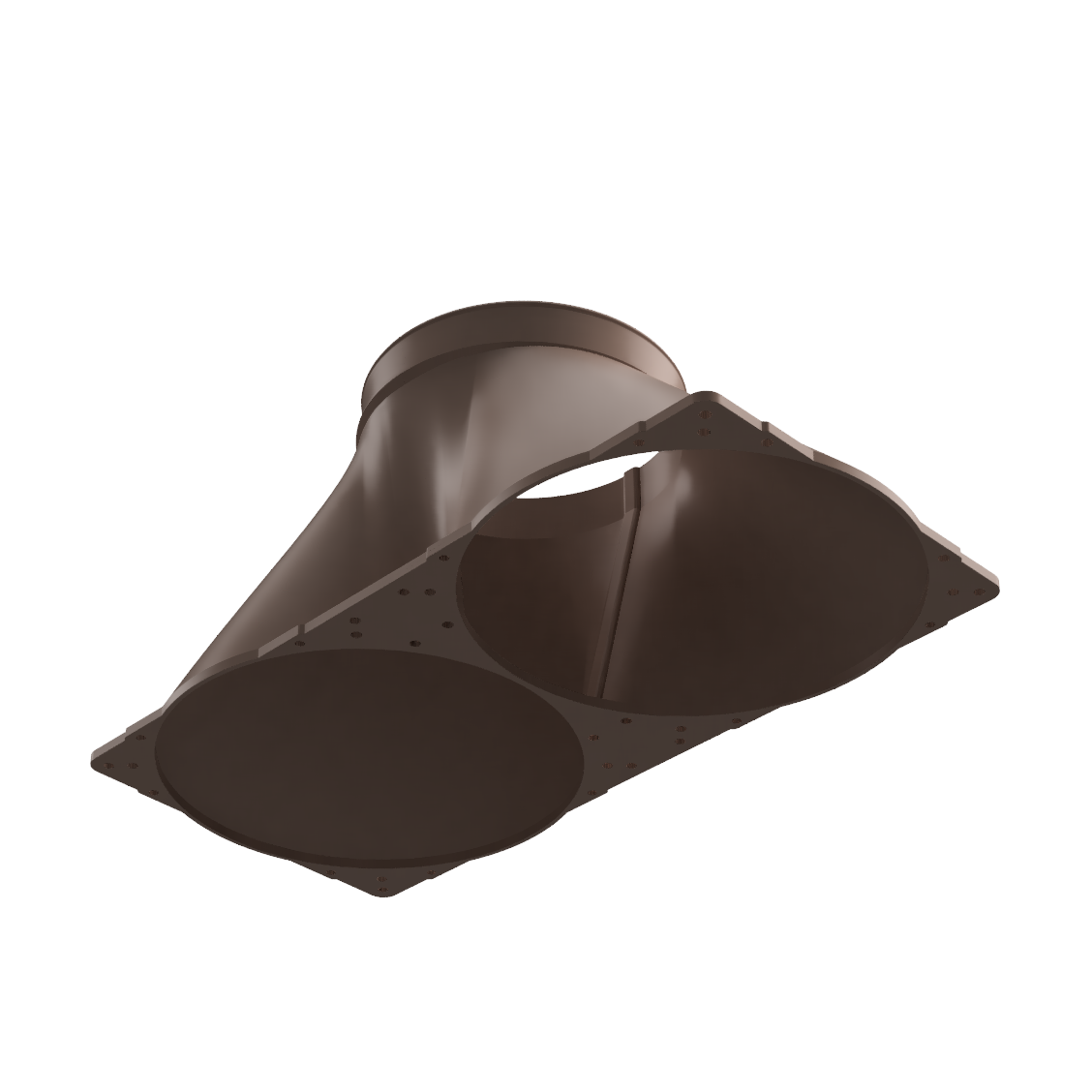

The mounting plate includes 154 x 154mm, 110 x 180mm and 170 x 170mm hole patterns and was developed around the Noctua NF-A20 range. Because 200mm fan dimensions are not fully standardised, other 200mm fans may also fit where the frame size, hole spacing and blade clearance match.

The adapter is produced in ASA and rated to a 100°C service temperature, providing extra temperature headroom for warm exhaust, server and ventilation environments.

Because two 200mm fans feed one duct, outlet diameter has a strong effect on system resistance. Larger ducting is preferable where maximum airflow is required.

Technical information

• Fan layout: two 200mm PC fans.
• Reference frame size: Noctua NF-A20 is 200 x 200 x 30mm.
• Supported mounting-hole patterns: 154 x 154mm, 110 x 180mm and 170 x 170mm.
• Duct sizes: 4, 5, 6, 7 and 8 inch.
• Metric equivalents: approximately 100, 125, 150, 175 and 200mm.
• Mounting plate thickness: 5mm.
• Duct collar depth: 25mm.
• Overall height: 155mm.
• Material: ASA.
• Maximum service temperature: 100°C.
• Mounting hardware: PC fan mounting screws; screws are not included.

Fan compatibility

Noctua owners can compare directly with the NF-A20 dimensions above. Owners of other 200mm fans should compare their own fan against the supported hole patterns and available blade clearance before ordering.

• Noctua NF-A20 range: NF-A20 PWM, NF-A20 FLX, NF-A20 5V, NF-A20 5V PWM and NF-A20 PWM chromax.black.swap.
• Phanteks PH-F200SP reference dimensions: 200 x 200 x 30mm frame with 154 x 154mm mounting holes.
• NZXT FZ-200 reference dimensions: 200 x 200 x 30mm frame with 154 x 154mm mounting holes, including RF-FZ20S-02 and LED variants.
• Cooler Master MasterFan MF200R ARGB reference dimensions: 200 x 200 x 25mm fan using the 154 x 154mm mounting pattern.

The model references above are provided to help compare dimensions; check your own fan before ordering because 200mm fan frames are not fully standardised.

Duct sizing

• 4 inch: approximately 100mm / 102mm ducting.
• 5 inch: approximately 125mm / 127mm ducting.
• 6 inch: approximately 150mm / 152mm ducting.
• 7 inch: approximately 175mm / 178mm ducting.
• 8 inch: approximately 200mm / 203mm ducting.

Fitment

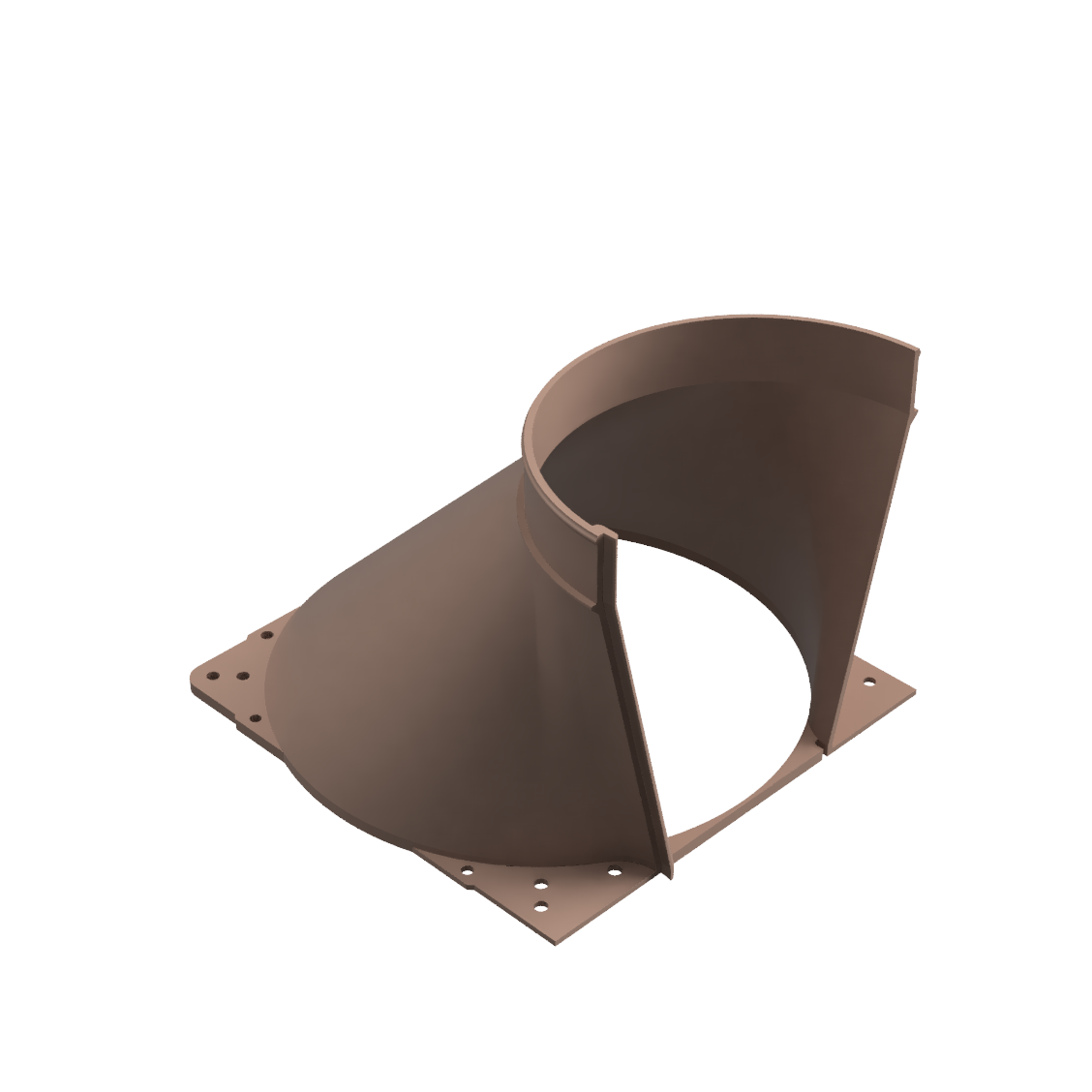

The body is supplied in two sections with joining plates and an overlapping joint. The overlap helps alignment and sealing; glue or another suitable sealant is recommended where air leakage needs to be minimised.

Flexible ducting can vary from its nominal size. Check the actual hose diameter where fit is critical. Smaller outlets, long hose runs and tight bends increase resistance.

Made to order

This product is made to order.
